You dream it we build it
We provides comprehensive range of Engineering services includes-Air-Conditioning, process cooling, humidification, ventilation, clean room up to class # 100 as per UKMCA/USFDA STD.
We are having in house facility with validation equipment such as Matwone make DOP photometer & generator , particle counter , velocity meter etc for clean room validation and specialized team of documentation such as DQ, FAT , SAT , IQ, SOP, OQ , calibration & PQ as per WHO standard
HEATING, VENTILATION & AIRCONDITIONING (HVAC)SYSTEM

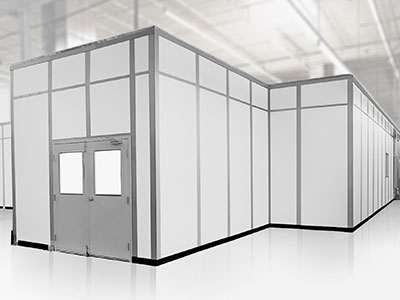

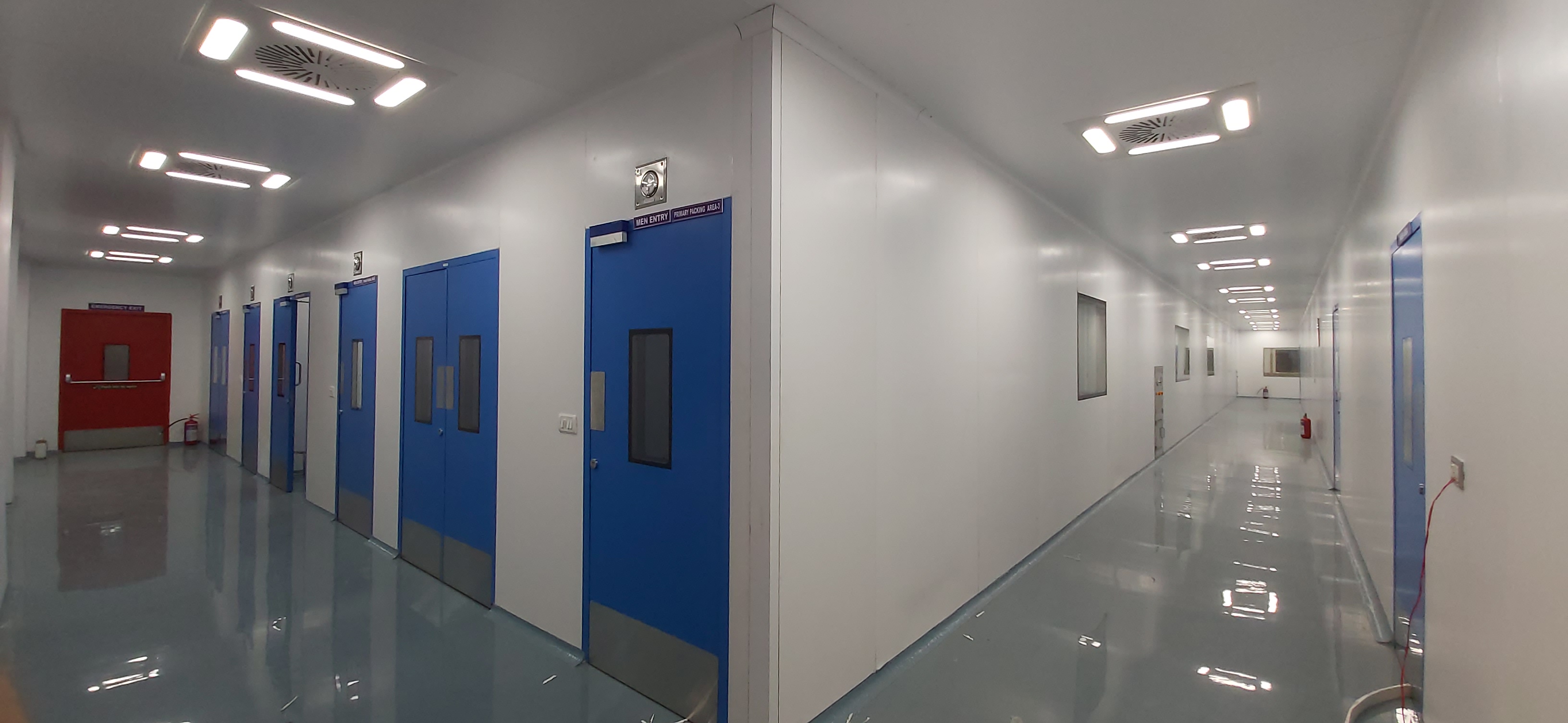

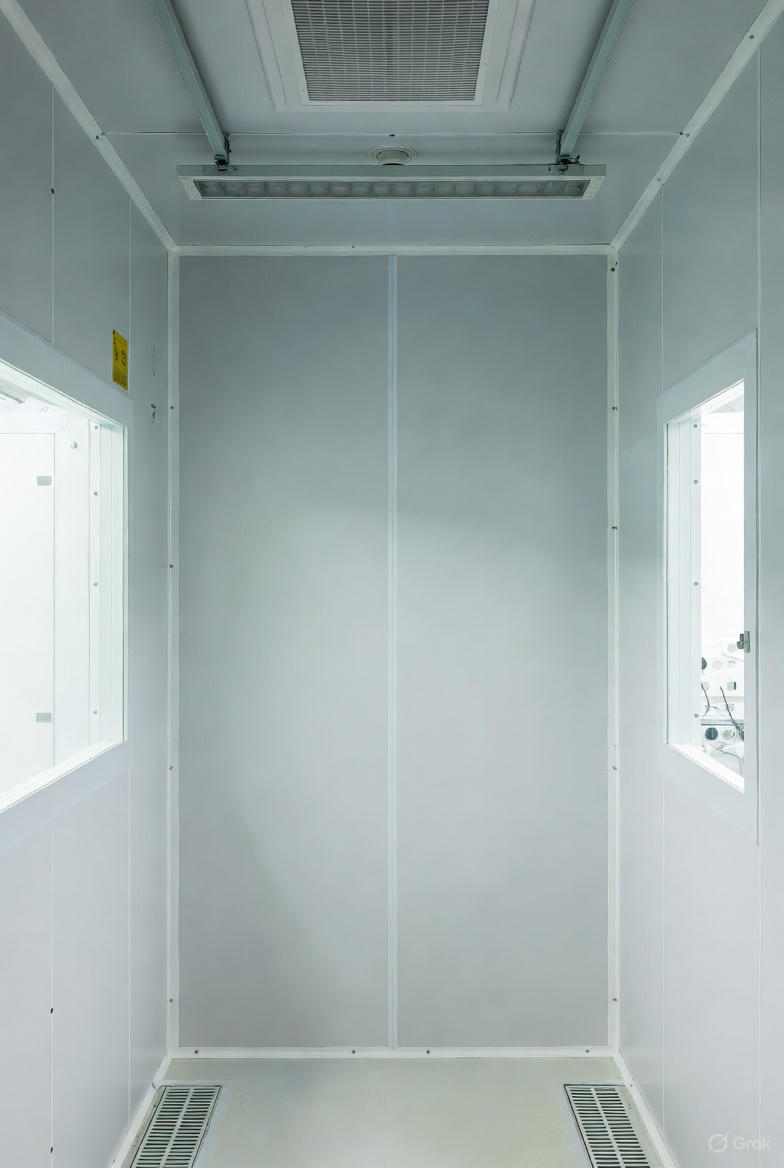

MODULAR CLEAN ROOM SYSTEM

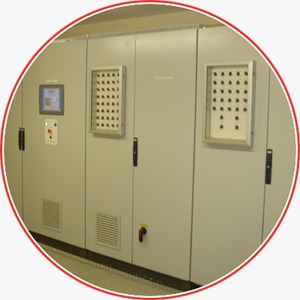

ELECTRICAL & BMS

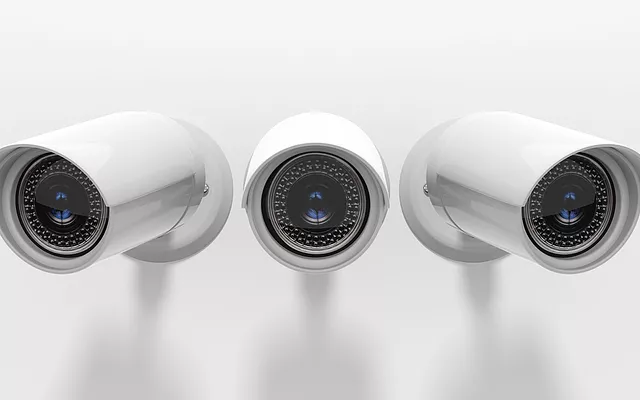

CCTV & FAS

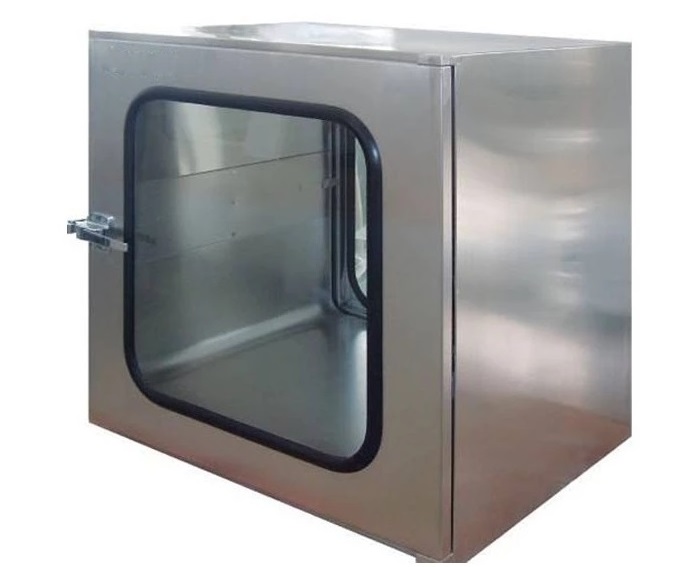

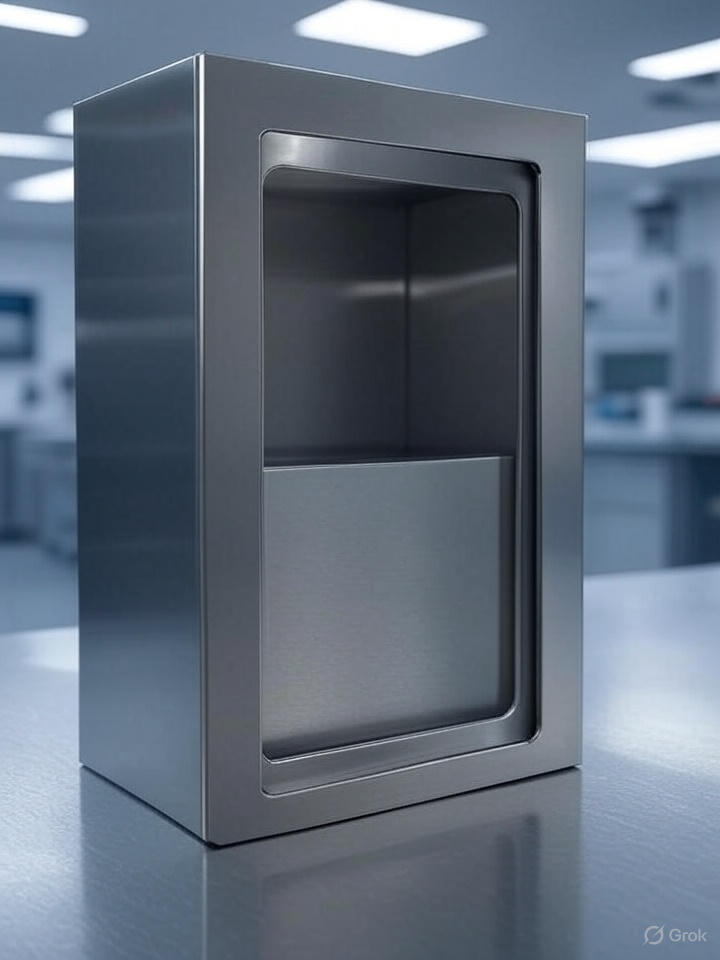

A dynamic pass box is fitted between classified and non-classified areas. Material is passed through vertically HEPA filtered air

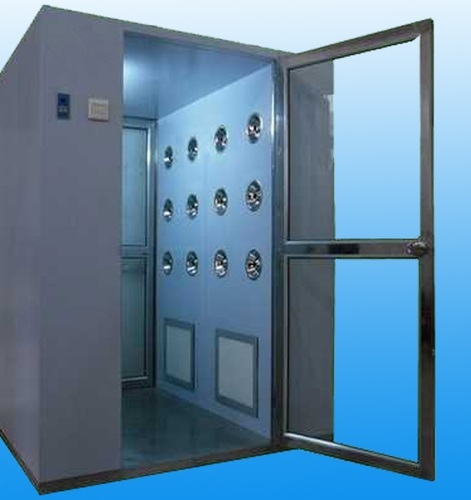

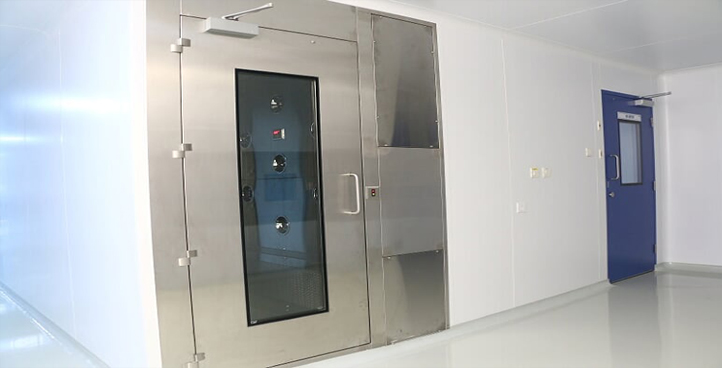

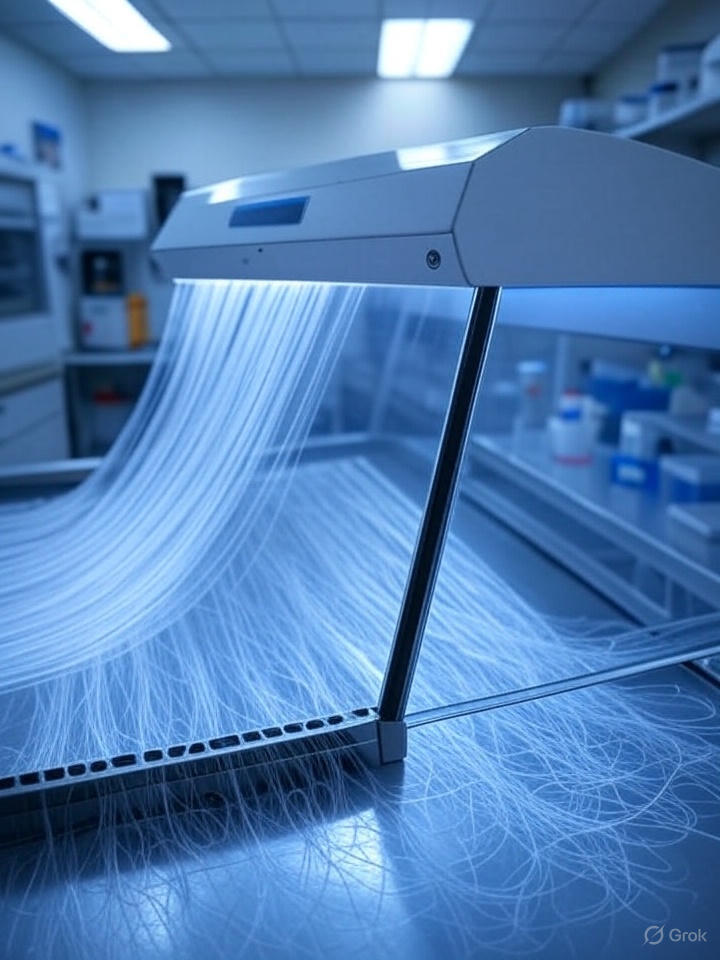

Air showers are specialized enclosed antechambers which are incorporated as entryways of cleanrooms and other controlled environments to reduce particle contamination. Air showers utilize high-pressure, HEPA- or ULPA-filtered air to remove dust, fibrous lint and other contaminants from personnel or object surfaces.

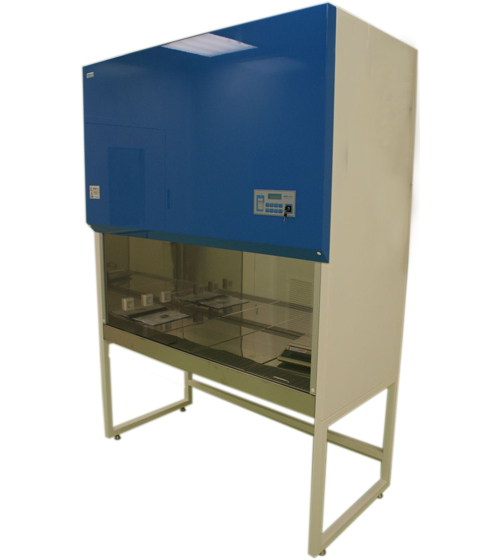

Laminar air flow systems are typically employed across 80% of a cleanroom ceiling to maintain constant air processing. Stainless steel or other non shedding materials are used to construct laminar air flow filters and hoods to prevent excess particles entering the air.

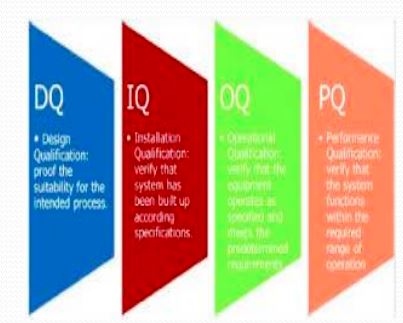

User requirements should be considered when deciding on the specific design of a system or equipment
To lay down the design philosophy of the system viz. Class, Temperature, RH conditions of the rooms.
DQ document should contain detailed design calculations, general arrangement schematic, internal component details depicting material of construction details and ratings.
To demonstrate that the system installed in building confirm to the purchase/ design specifications.
To Verify all Major components..
Description of required supporting utilities :Electrical, water/ brine, steam etc.
Applicable for new installation, modification, replacement, or relocation of any equipment of the system
To determine that the system operates according to specifications, recording all relevant data for demonstrating that it functions as expected.
Validating various parameters using calibrated instruments and simultaneously recording data.
Establishing various SOPs as per clients requirement.
Compiling Manuals of various equipment's of the system.
To determine that the system is delivering the intended performance consistently and recording all relevant information and data.
PQ can be performed in three stages.
At-rest” (equipped but no operations and no personnel).
Operational” (with personnel, equipment operations)

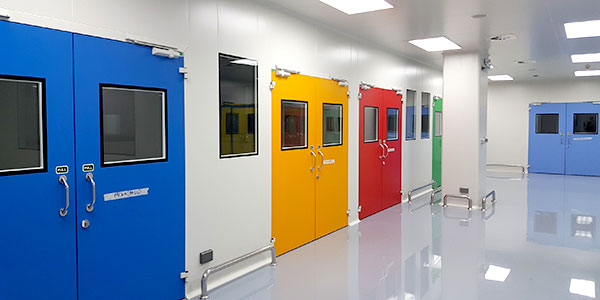

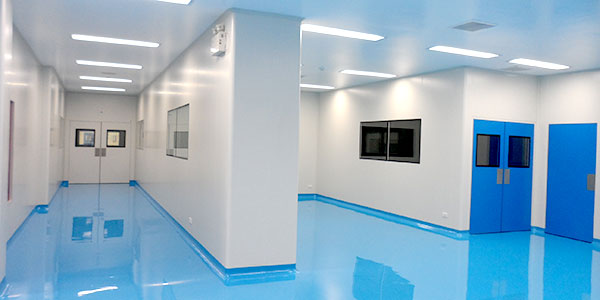

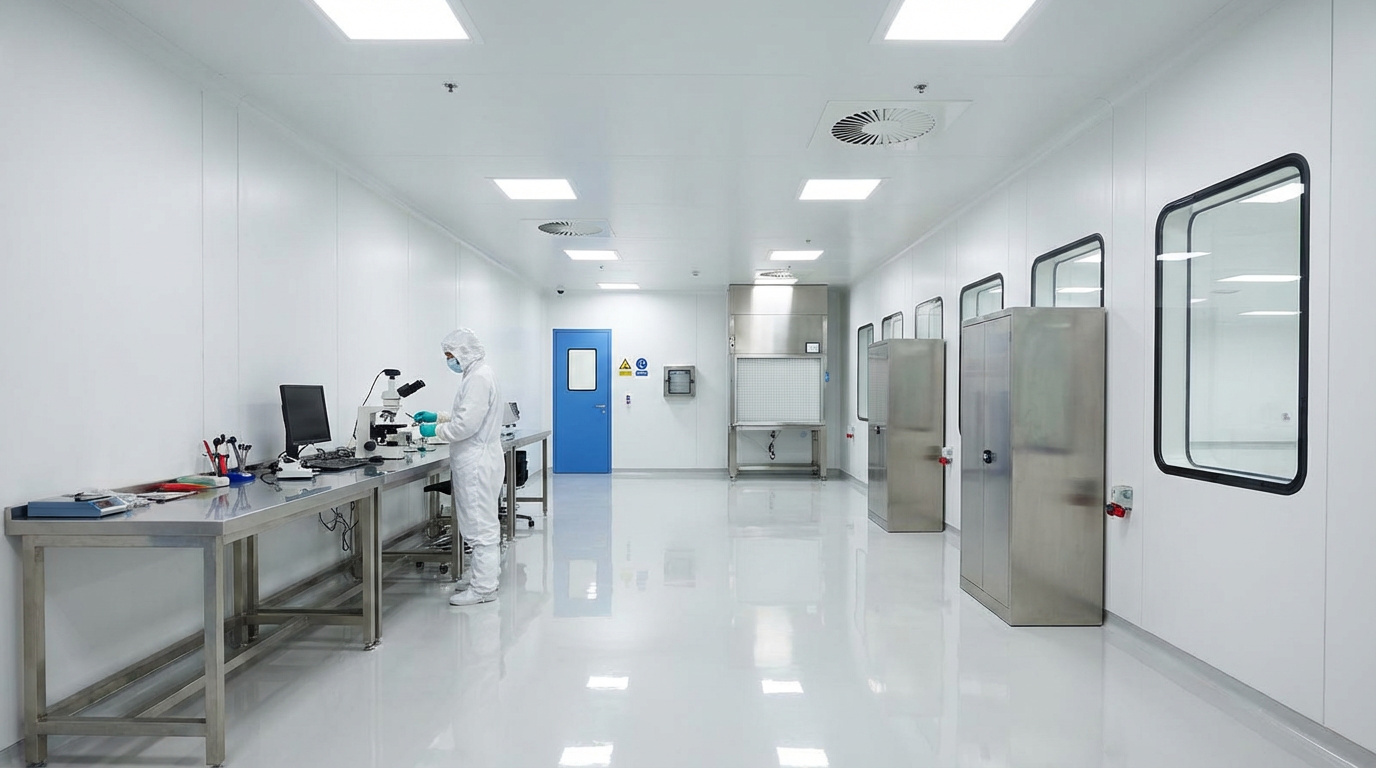

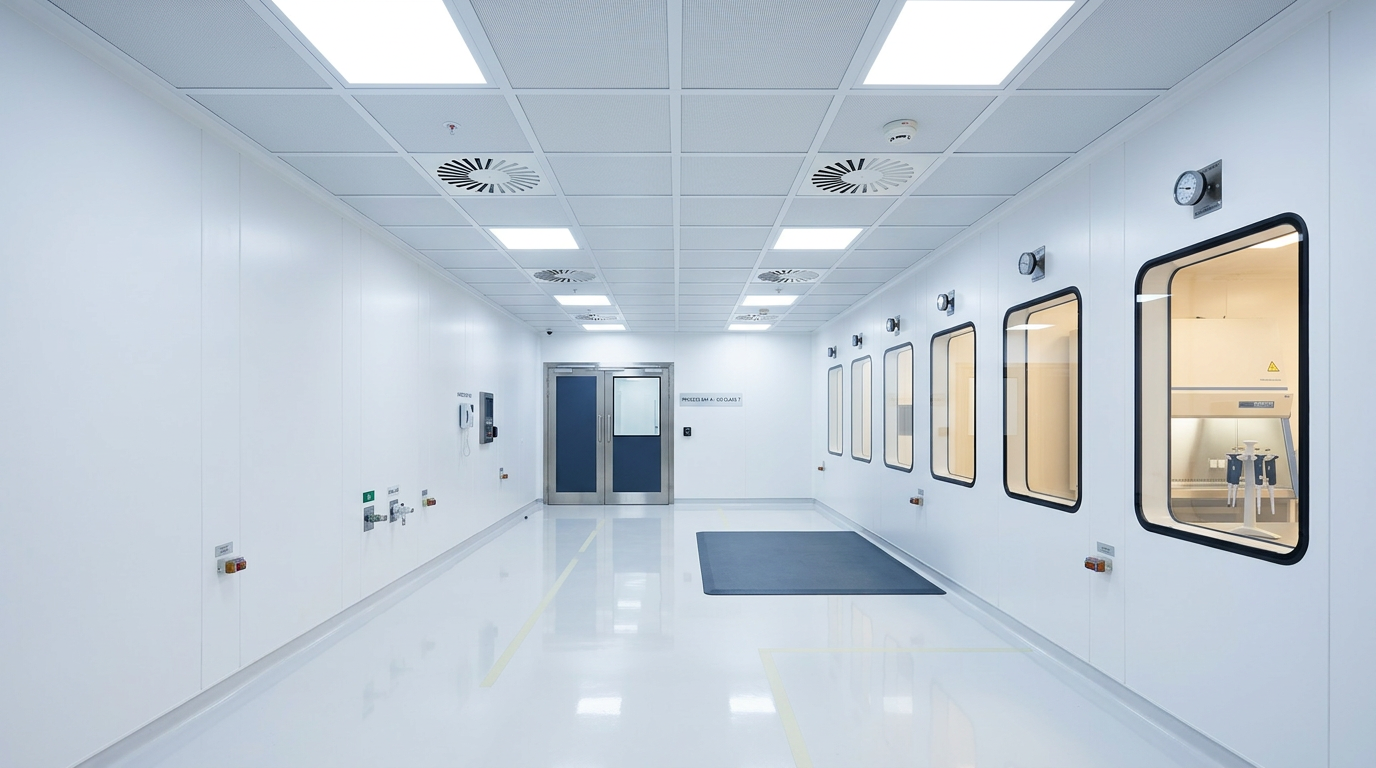

A specially constructed area employing high quality air from HVAC system with controlled environmental factors such as humidity, temperature, particle and microorganism.
It also has high quality room surfaces finishes that are smooth easily cleanable and non-shedding.
A controlled environment area.
| WHO (GMP) | U.S.A (209E) | U.S.A (Customary) | ISO/TC (209) | EU (GMP) |
|---|---|---|---|---|
| Grade A | M 3.5 | Class 100 | ISO 5 | Grade A |
| Grade B | M 4.5 | Class 1000 | ISO 6 | Grade B |
| Grade C | M 5.5 | Class 10000 | ISO 7 | Grade C |
| Grade D | M 6.5 | Class 100000 | ISO 8 | Grade D |
Our trained design team deploys the most cost effective and energy efficient system by using :-
❖ Application knowledge
❖ Modern design techniques.
❖ Gap Analysis for Retro fit Job.
❖ We understand the client’s Process and requirement.
❖ We design it accordingly with appropriate solution.
❖ Project activities are controlled by two tier project management team serving as main fulcrum of project execution at site and simultaneously being single point communication to client.
❖ Dedicated Field quality inspectors ensure the right quality delivered at the first instance to get substantial time savings in the complete installation …..Do it right the first time…
Our Quality Policy❖ We firmly believe that safety and productivity go hand in hand….
❖ We ensure on safety Belts Helmets, Belts, Gloves, Sky Jacks & Harnysis etc.
❖ Training sessions at site.
❖ Tool box discussion for minutes.
Our Safety Policy❖ Our sites are provided with proper site office & stores.
❖ Scaffoldings, Lifts .
❖ Modern Tools and Tackles for faster and efficient installation .
❖ We give a major emphasis on proper validation and documentation through.
❖ Our experienced professionals.
❖ Preparation and conducting DQ/IQ/OQ and PQ as per current standards (Ex. ISO - 14644) or as per clients protocol.
❖ we are geared up to take care of entire life cycle of the system / products …..we offer operation and maintenance services for your facilities.

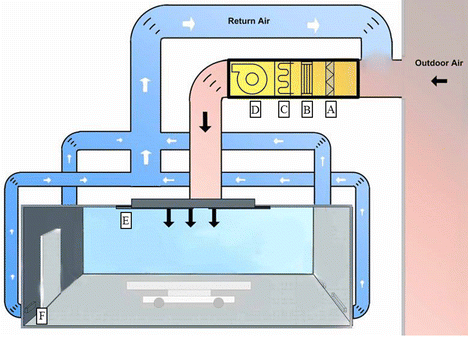

➢ Multiple stage filtration.
➢ Dilution by increasing air quantity in circulation commonly measured in terms of ACPH.
➢ Addition of fresh air in the supply air and balancing it with proper exhaust from the system
➢ Designing Cleanliness class to establish / achieve desired Recovery time.
➢ Cooling and dehumidification through chilled water / brine coils or a combination of both using modulating valves via field sensors.
➢ Low / Ultra Low RH levels with dehumidifier (Rotary / Liquid Desiccant).
➢ Reheat with hot water coils / Steam coil / electric heaters
➢ Terminal / Zone reheaters / after coolers for zone control

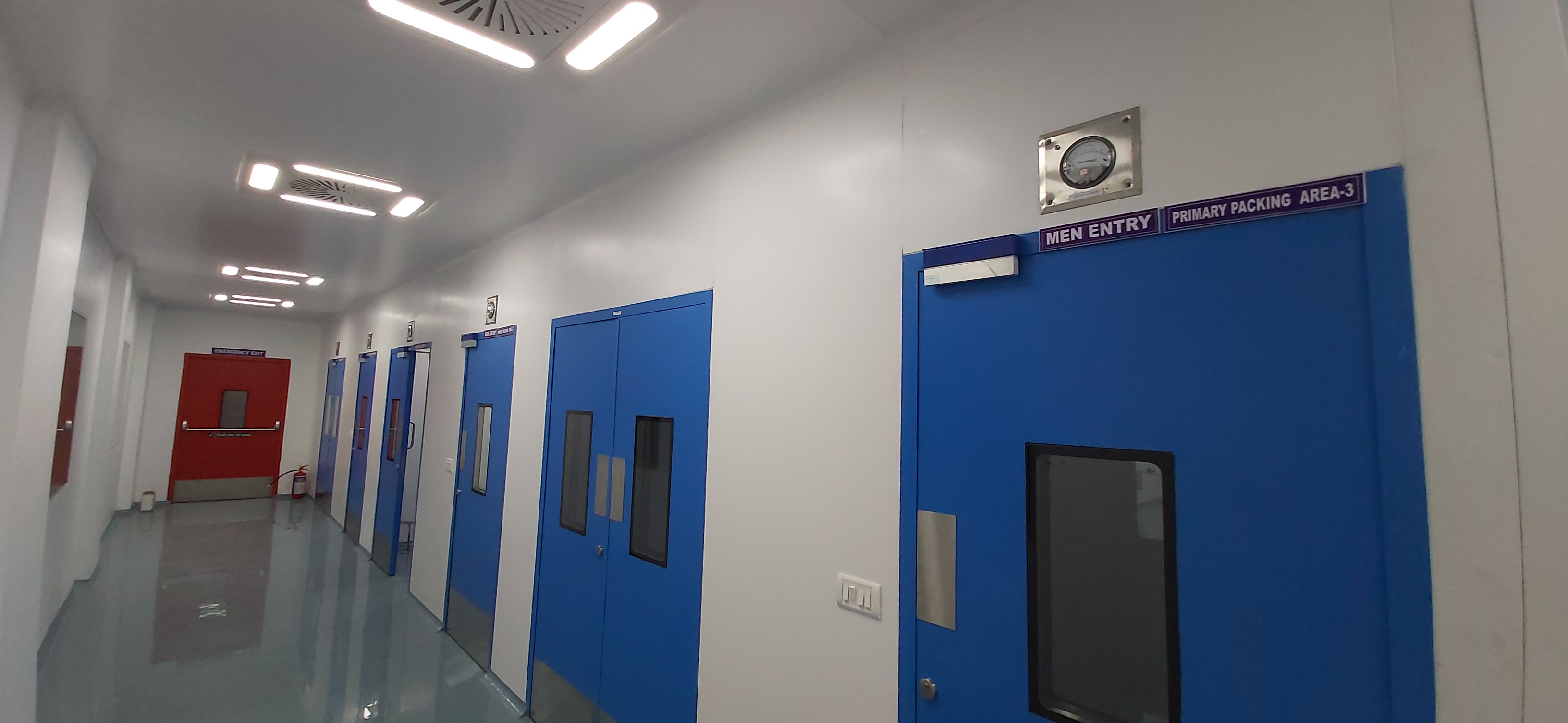

➢ Classified and unclassified areas segregated by maintaining pressure gradient between them.
➢ Quantifying the amount of air leakages through door gaps / other cracks and balancing it with appropriate quantum of supply / return air.
➢ Differential pressures maintained by control of supply and return air quantities, manually or automatically by pressure sensors
